Description
Overview

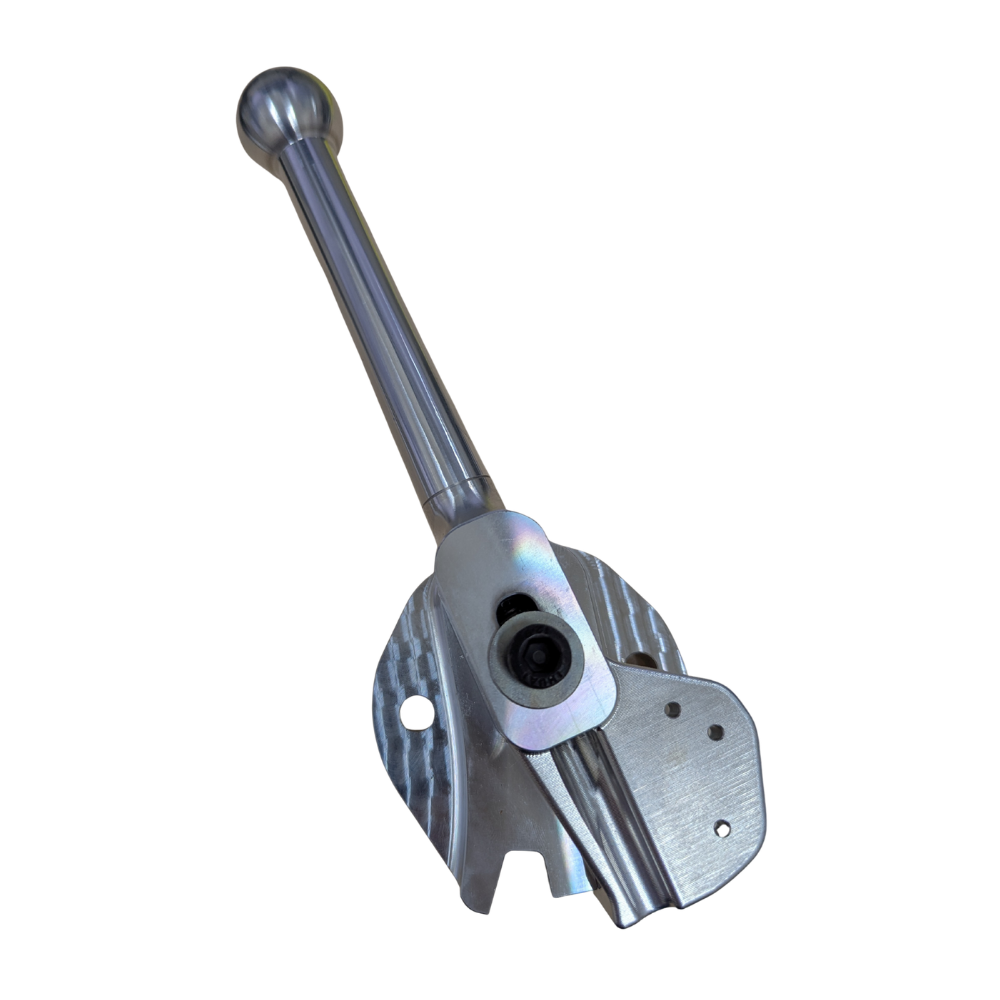

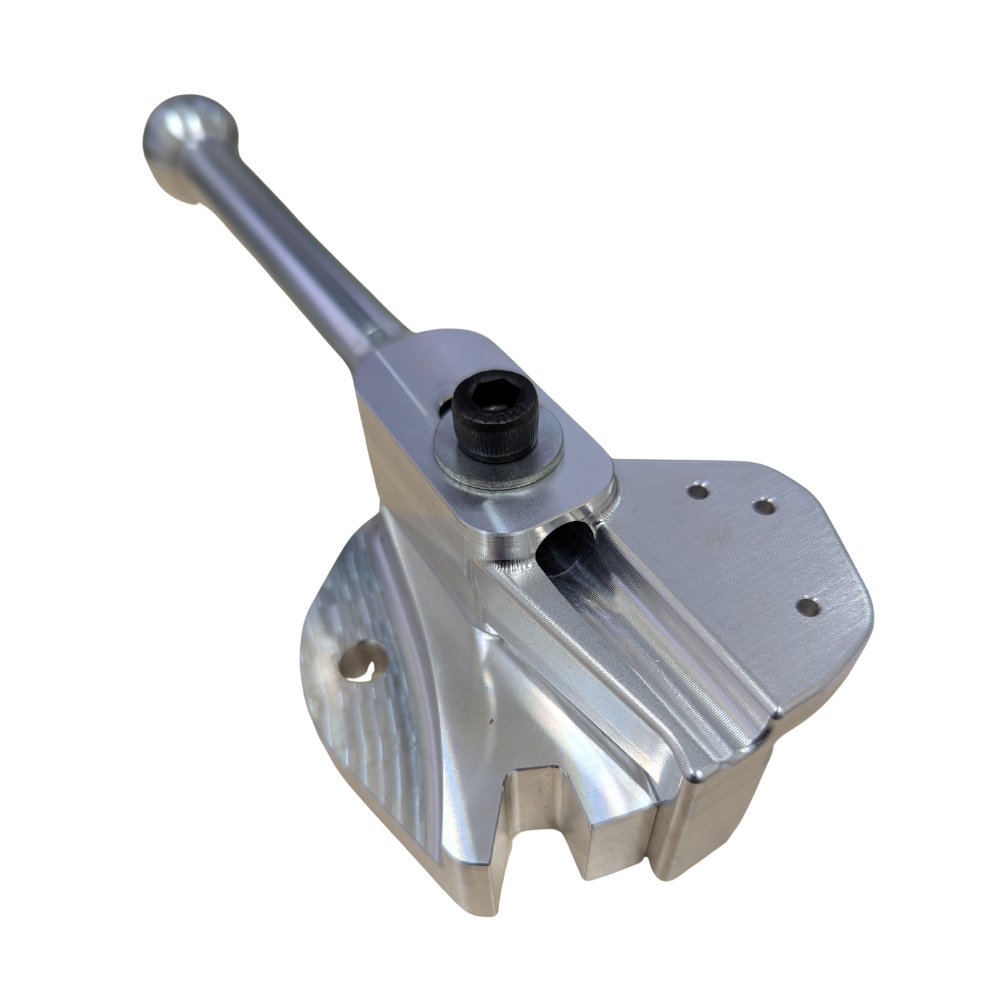

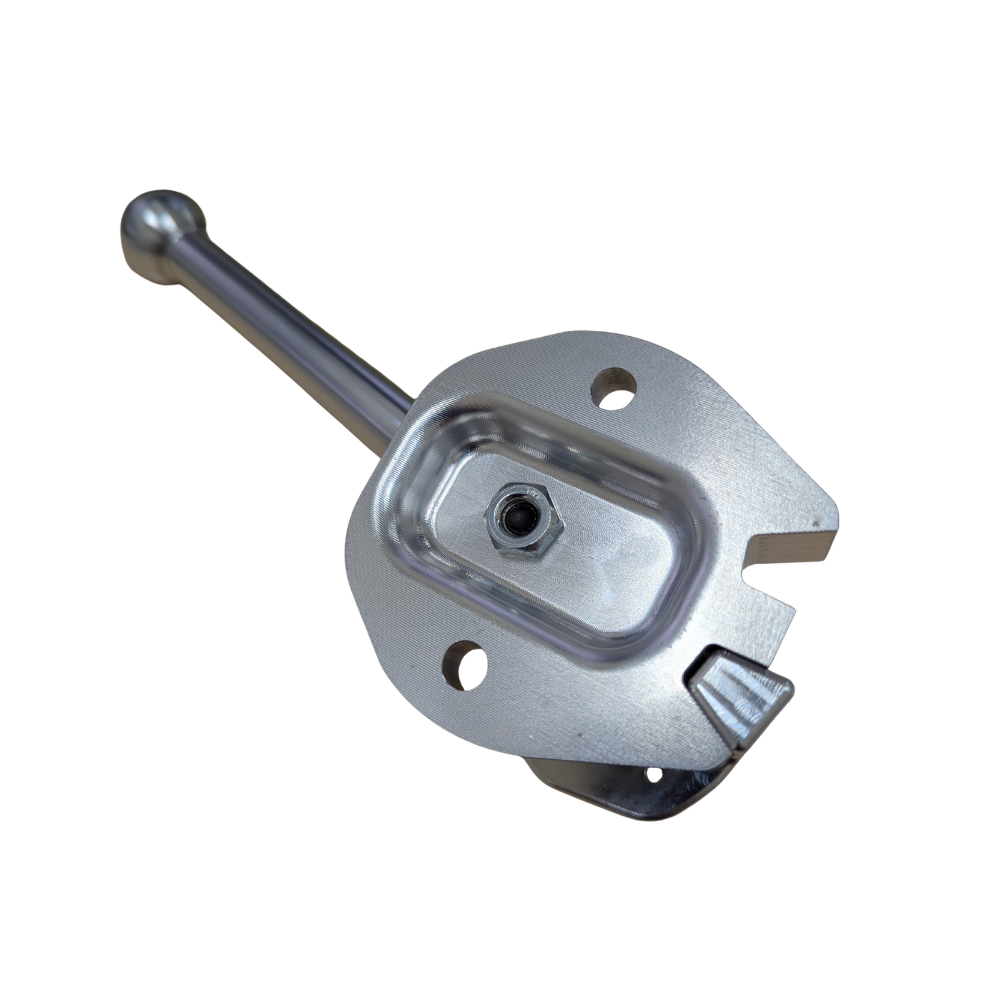

Dog Clutch Lever 8in Push Down Type gives marine dog clutch setups a direct, repeatable two-position selector. The 8in handle gives clear hand leverage. The push-down action locks the lever into position and helps stop accidental movement. The machined gate gives the lever a firm, deliberate feel. Part Number (ID) DC10-V supports Argomarine stock control and picking.
Features
- 8in lever length for clear, comfortable movement
- Push-down release action with positive gated locking
- Two-position design for dog clutch selector setups
- Machined body for rigid, direct lever feel
Specifications and Materials
This listing covers the lever assembly only. The design uses a two-position push-down gate instead of a free-moving lever. That layout helps the selector stay in place and reduces unwanted movement in service. Check finish and included linkage hardware against your current setup before ordering. For general background on marine transmission clutch operation, see the Twin Disc marine transmission operator’s manual.
Compatibility and Fitment
Dog Clutch Lever 8in Push Down Type suits marine dog clutch installations that use a two-position selector and mechanical linkage. It suits older inboard ski boat and performance boat setups that need simple, positive control. Before you buy, compare lever travel, pivot direction, mounting footprint, and linkage connection with your current assembly. Also check that the lever clears nearby hardware and engine covers through full travel.
Compliance and Safety
Stop the drivetrain before you install or adjust the lever. After fitting, confirm full travel into both positions. Make sure the push-down lock re-engages fully. Check that the linkage does not preload the selector. Recheck all fasteners after the first run. Poor adjustment can cause incomplete engagement and faster wear.
Marine Applications
This lever suits ski boats, circuit boats, and other inboard setups that use a dog clutch selector. It works well as a replacement for worn or loose levers. It also suits custom builds that want a cleaner machined look with defined gate action. The direct control gives the driver better feedback during launch, docking, and repeated stop-start use.
Why Choose Argomarine
Argomarine supplies specialist inboard drivetrain parts for older and harder-to-source marine setups. This Dog Clutch Lever 8in Push Down Type gives you a clearer replacement path when your current lever feels worn, loose, or poorly locked. Browse the Argomarine Argo Clutch Parts and marine dog clutch hardware range
